Teradek Bolt 500 XT

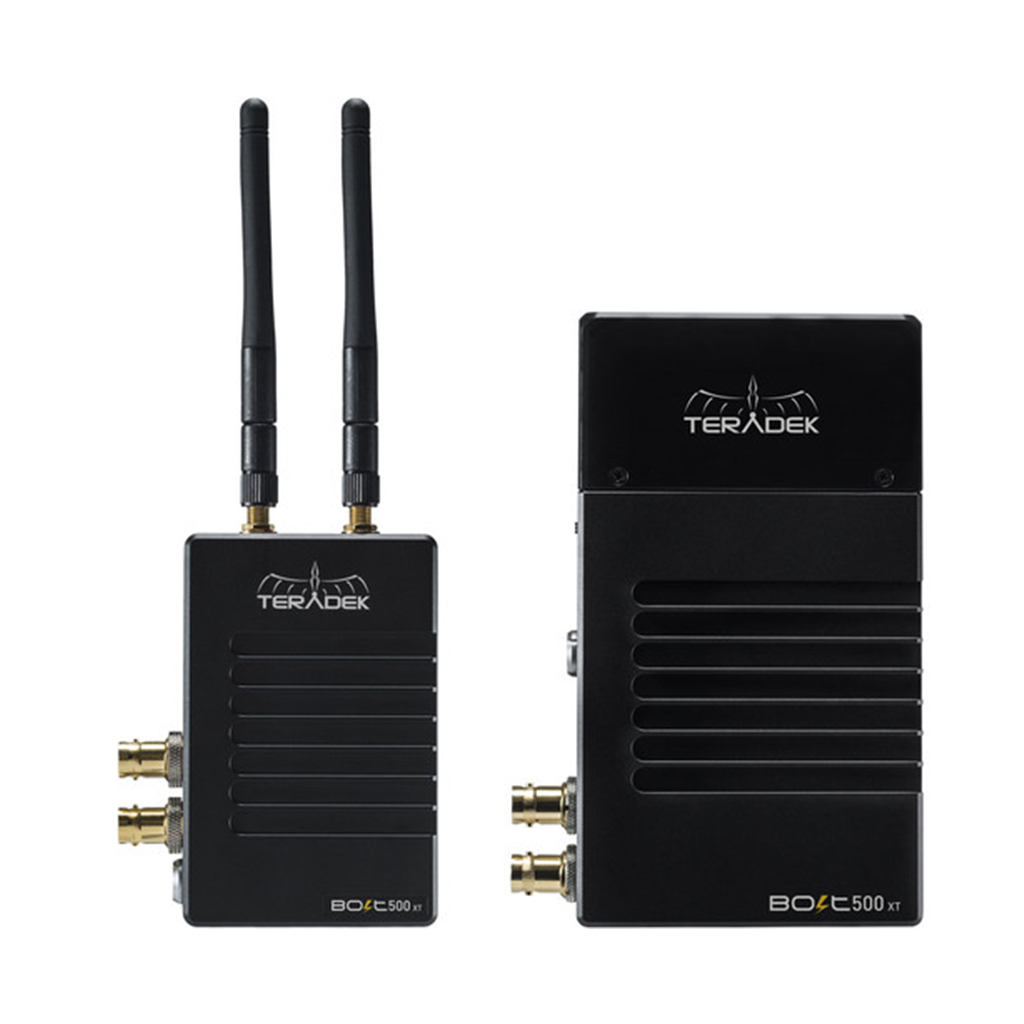

Teradek Bolt 500 XT Wireless Video Set

Note: We have 2 identical TX/RX sets available for rent. Please check availability for multi-camera setups or 1:2 setups.

Reliable, zero-delay wireless monitoring for professional sets.

The Teradek Bolt 500 XT is the industry standard for short-range wireless video transmission, providing a robust, visually lossless feed with virtually zero latency (<1ms). Whether you are pulling focus or providing a feed for video village, the Bolt 500 XT ensures your team stays in sync with the action.

Designed for professional production, this set supports both 3G-SDI and HDMI workflows, featuring built-in cross-conversion and advanced software tools to help you manage complex setups with ease.

Key Features

• Zero Latency: Transmit 1080p60 video with less than 0.001 seconds of delay.
• Reliable Range: Consistent, stable transmission up to 500 ft (152m) line-of-sight.
• Flexible I/O: Supports both 3G-SDI and HDMI with built-in cross-conversion.
• Professional Monitoring: Includes advanced tools like a 5GHz spectrum analyzer, 3D LUT support, and manual frequency selection.
• Secure: Features AES-128 encryption to keep your signal secure.
• Multicast Capable: Can transmit to multiple receivers simultaneously.

Technical Specifications

• Video Format: Up to 1080p60
• Latency: < 1 ms
• Range: 500 ft (152 m)
• Inputs (TX): 1x 3G-SDI, 1x HDMI
• Outputs (RX): 1x 3G-SDI, 1x HDMI
• Power: 7-17V (TX) / 7-28V (RX) via 2-pin Lemo
• Weight: ~226g (TX) / ~297g (RX)
